Seals Eastern is able to mold slugs / billets
for your lathe cut rubber packer element and other oilfield
prototypes. Our billets are molded using
Aflas®,
Viton®,
HNBR, Nitrile, EPDM, and other synthetic rubber
for use in oilfield applications (See our
standard compounds for a listing).

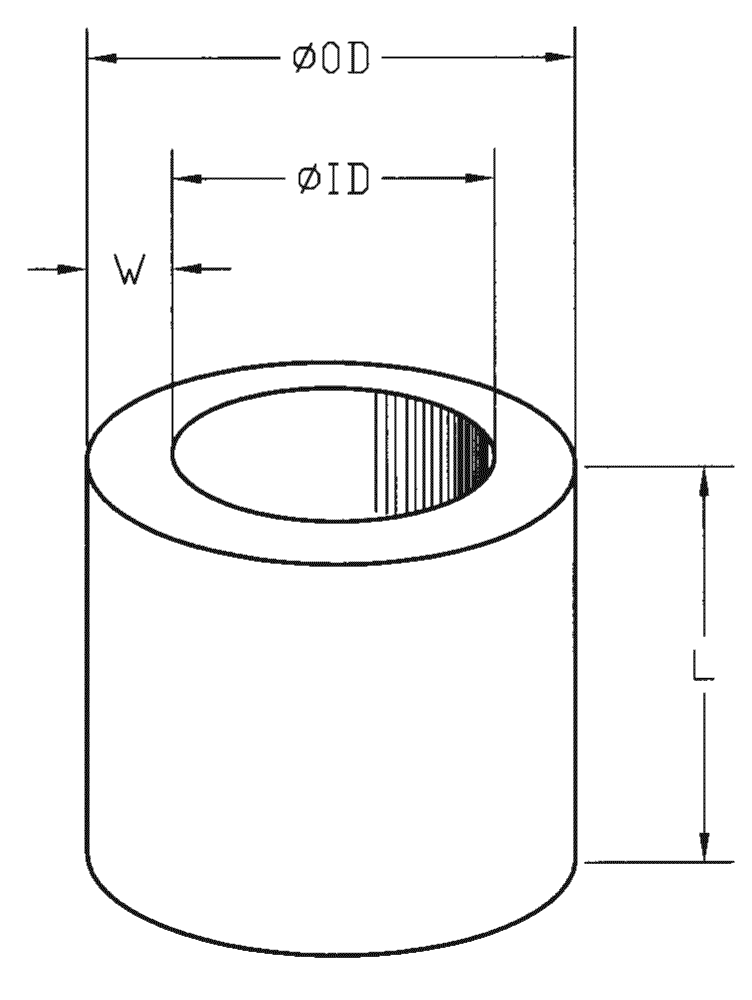

Mold cost can be prohibitive for a one time element or development prototype. To save money, precision molded billets can be used to lathe cut packer elements for completions, steam injections, and other downhole projects. Some of the available billet sizes are tabulated below.
ID (in.)nominal | OD (in.)nominal | L (in.)nominal |
---|---|---|
0 | 3-1/8 | 4-1/4 |
0 | 9 | 6 |
0 | 9-5/8 | 5 |
7/8 | 1-5/8 | 1-3/4 |
7/8 | 1-7/8 | 3-3/8 |
1-1/8 | 2-3/8 | 1 |
2 | 4 | 12 |
2-3/8 | 4-1/2 | 12 |
2-3/4 | 6-1/4 | 12 |
2-7/8 | 4-1/4 | 5-1/2 |
3 | 6 | 7 |
3-1/4 | 4-3/8 | 7 |
3-3/4 | 6-3/4 | 12 |
4 | 6-1/4 | 12 |
4-1/8 | 5-3/8 | 5 |
4-1/2 | 6-1/4 | 12 |
4-5/8 | 8-1/8 | 8-3/8 |
5 | 6-1/4 | 4-1/2 |
5 | 8-3/8 | 8-1/4 |
5-1/4 | 6-1/8 | 5 |
6-3/4 | 8-1/8 | 4 |
6-3/4 | 9 | 8-1/4 |
6-3/4 | 9-1/2 | 11-1/2 |
7 | 9-5/8 | 7-3/4 |
